Hands-on with Backstage on Azure: From App Service to Azure DevOps

Chapter 0 - Hello, Backstage World!

Overview

In this chapter we will initialize the standalone app for the moment. In the later chapters we will add an external database to it and deploy it to Azure.

To get set up quickly with your own Backstage project you can create a Backstage App.

A Backstage App is a monorepo setup with lerna that includes everything you need to run Backstage in your own environment.

Instructions

Step 0 - Prerequisites

Create a new directory for all the workshop files and navigate into it.

mkdir pulumi-backstage-azure-workshop
cd pulumi-backstage-azure-workshop

This will be the root directory for the workshop. Keep this in mind for all the following steps and chapters.

Step 1 - Create a Backstage App

Backstage provides a utility for creating new apps. It guides you through the initial setup of selecting the name of the app and a database for the backend. The database options are either SQLite or PostgreSQL, where the latter requires you to set up a separate database instance.

To create a new app, run the following command:

npx @backstage/create-app@latest

If prompted, enter a name for the app. This will be the name of the directory that is created. I suggest to use backstage

? Enter a name for the app [required] backstage

Creating the app...

 Checking if the directory is available:
  checking      backstage ✔

 Creating a temporary app directory:

 Preparing files:
  copying       .dockerignore ✔
  copying       .eslintignore ✔
  templating    .eslintrc.js.hbs ✔
  templating    .gitignore.hbs ✔
  copying       .prettierignore ✔
  copying       README.md ✔
  copying       app-config.local.yaml ✔
  copying       app-config.production.yaml ✔
  templating    app-config.yaml.hbs ✔
  templating    backstage.json.hbs ✔
  templating    catalog-info.yaml.hbs ✔
  copying       lerna.json ✔
  templating    package.json.hbs ✔
  copying       playwright.config.ts ✔
  copying       tsconfig.json ✔
  copying       yarn.lock ✔
  copying       README.md ✔
  copying       entities.yaml ✔
  copying       org.yaml ✔
  copying       template.yaml ✔
  copying       catalog-info.yaml ✔
  copying       index.js ✔
  copying       package.json ✔
  copying       README.md ✔
  templating    .eslintrc.js.hbs ✔
  copying       Dockerfile ✔
  copying       README.md ✔
  templating    package.json.hbs ✔
  copying       index.test.ts ✔
  copying       index.ts ✔
  copying       types.ts ✔
  copying       app.ts ✔
  copying       auth.ts ✔
  copying       catalog.ts ✔
  copying       proxy.ts ✔
  copying       scaffolder.ts ✔
  templating    search.ts.hbs ✔
  copying       techdocs.ts ✔
  copying       .eslintignore ✔
  templating    .eslintrc.js.hbs ✔
  templating    package.json.hbs ✔
  copying       android-chrome-192x192.png ✔
  copying       apple-touch-icon.png ✔
  copying       favicon-16x16.png ✔
  copying       favicon-32x32.png ✔
  copying       favicon.ico ✔
  copying       index.html ✔
  copying       manifest.json ✔
  copying       robots.txt ✔
  copying       safari-pinned-tab.svg ✔
  copying       app.test.ts ✔
  copying       App.test.tsx ✔
  copying       App.tsx ✔
  copying       apis.ts ✔
  copying       index.tsx ✔
  copying       setupTests.ts ✔
  copying       LogoFull.tsx ✔
  copying       LogoIcon.tsx ✔
  copying       Root.tsx ✔
  copying       index.ts ✔
  copying       EntityPage.tsx ✔
  copying       SearchPage.tsx ✔

 Moving to final location:
  moving        backstage ✔

 Installing dependencies:
  determining   yarn version ✔
  executing     yarn install ✔
  executing     yarn tsc ✔

🥇  Successfully created backstage


 All set! Now you might want to:
  Run the app: cd backstage && yarn dev
  Set up the software catalog: https://backstage.io/docs/features/software-catalog/configuration
  Add authentication: https://backstage.io/docs/auth/

This can take a few minutes to complete. But you should see the current progress in the terminal.

You should now have a new directory called backstage in your root directory, which contains following files and folders:

backstage/
├── README.md
├── app-config.local.yaml
├── app-config.production.yaml
├── app-config.yaml
├── backstage.json
├── catalog-info.yaml
├── dist-types
│   ├── packages
│   └── tsconfig.tsbuildinfo
├── examples
│   ├── entities.yaml
│   ├── org.yaml
│   └── template
├── lerna.json
├── package.json
├── packages
│   ├── README.md
│   ├── app
│   └── backend
├── playwright.config.ts
├── plugins
│   └── README.md
├── tsconfig.json
└── yarn.lock

app-config.yaml: Main configuration file for the app.
catalog-info.yaml: Catalog Entities descriptors.
lerna.json: Contains information about workspaces and other lerna configuration needed for the monorepo setup.
package.json: Root package.json for the project. Note: Be sure that you don’t add any npm dependencies here as they probably should be installed in the intended workspace rather than in the root.
packages/: Lerna leaf packages or “workspaces”. Everything here is going to be a separate package, managed by lerna.
packages/app/: An fully functioning Backstage frontend app, that acts as a good starting point for you to get to know Backstage.
packages/backend/: The backend for Backstage.

Step 2 - Run the App

As soon as the app is created, you can run it by navigating into the backstage directory and running the following command:

cd backstage
yarn dev

The yarn dev command will run both the frontend and backend as separate processes (named [0] and [1]) in the same window. When the command finishes running, it should open up a browser window displaying your app. If not, you can open a browser and directly navigate to the frontend at http://localhost:3000.

Step 3 - Explore the App

Let’s have a look on some of the values in the different files and change them to your needs.

First we change the name of our organization in the app-config.yaml file. Open the file and change the organization name to a name of your choice.

organization:
  name: Pulumi

Because we are still in the development mode, any changes to the app-config.yaml file will be reflected in the app as soon as you save the file. You can see the changes in the browser window.

Step 4 - Add Azure DevOps Integration

The backbone of Backstage is the rich integration with different tools and services. This will be all done via the plugin system.

There are a huge number of plugins available for Backstage. You can find them in the Backstage Plugin Catalog.

Note: Currently there is some major refactoring going on in the Backstage project. The plugin system will be changend in the near future to support a more declarative approach. This will make it easier to develop and add new plugins to Backstage. See the RFC for more information.

Add this to the app-config.yaml file:

azureDevOps:
  host: dev.azure.com
  token: ${AZURE_PAT}
  organization: ${AZURE_ORG}

integrations:
  azure:
  - host: dev.azure.com
    credentials:
    - personalAccessToken: ${AZURE_PAT}
      organizations:
      - ${AZURE_ORG}

This will add the Azure DevOps integration to your app. The AZURE_PAT and AZURE_ORG are environment variables that you need to set. You can do this by adding the above lines to your app-config.local.yaml file for local development.

azureDevOps:
  host: dev.azure.com
  token: <your personal access token>
  organization: <your organization>

integrations:
  azure:
  - host: dev.azure.com
    credentials:
    - personalAccessToken: <your personal access token>
      organizations:
      - <your organization>

Time to add the Azure DevOps plugin to your Backstage app.

Step 4.1 - Add the Azure DevOps Backend Plugin

Add the Azure DevOps backend plugin to your Backstage backend, this will allow you to fetch data from Azure DevOps.

# From your Backstage root directory
yarn add --cwd packages/backend @backstage/plugin-azure-devops-backend

Then we will create a new file named packages/backend/src/plugins/azure-devops.ts, and add the following code snippet to it:

import {createRouter} from '@backstage/plugin-azure-devops-backend';
import {Router} from 'express';
import type {PluginEnvironment} from '../types';

export default function createPlugin(
    env: PluginEnvironment,
): Promise<Router> {
    return createRouter({
        logger: env.logger,
        config: env.config,
        reader: env.reader,
    });
}

Next we wire this into the overall backend router, edit packages/backend/src/index.ts:

import azureDevOps from './plugins/azure-devops';

// ...
async function main() {
    // ...
    // Add this line under the other lines that follow the useHotMemoize pattern
    const azureDevOpsEnv = useHotMemoize(module, () => createEnv('azure-devops'));
    // ...
    // Insert this line under the other lines that add their routers to apiRouter in the same way
    apiRouter.use('/azure-devops', await azureDevOps(azureDevOpsEnv));

Step 4.2 - Add the Azure DevOps Frontend Plugin

Add the Azure DevOps frontend plugin to your frontend. The Azure DevOps frontend plugin contains a number of components that can be used to display Azure DevOps data in the Backstage frontend.

# From your Backstage root directory
yarn add --cwd packages/app @backstage/plugin-azure-devops

Step 4.2.1 - Add the Azure Repos Component

Then open packages/app/src/components/catalog/EntityPage.tsx, and add the following to it:

import {
    EntityAzurePullRequestsContent,
    isAzureDevOpsAvailable,
} from '@backstage/plugin-azure-devops';

// For example in the Service section
const serviceEntityPage = (
        <EntityLayout>
                // ...
                <EntityLayout.Route if={isAzureDevOpsAvailable} path="/pull-requests" title="Pull Requests">
                    <EntityAzurePullRequestsContent defaultLimit={25} />
               </EntityLayout.Route>
        </EntityLayout>
        //...
);

Step 4.2.2 - Add the Azure Pipelines Component

Open again packages/app/src/components/catalog/EntityPage.tsx and add the following to it:

// In packages/app/src/components/catalog/EntityPage.tsx
import {
    EntityAzurePipelinesContent,
    isAzureDevOpsAvailable,
} from '@backstage/plugin-azure-devops';

// For example in the CI/CD section
const cicdContent = (
  <EntitySwitch>
    // ...
    <EntitySwitch.Case if={isAzureDevOpsAvailable}>
        <EntityAzurePipelinesContent defaultLimit={25} />
    </EntitySwitch.Case>
    // ...
  </EntitySwitch>
  // ...
);

Step 4.2.3 - Add the Git README

Open packages/app/src/components/catalog/EntityPage.tsx, and add the following to it:

import {
    EntityAzureReadmeCard,
    isAzureDevOpsAvailable,
} from '@backstage/plugin-azure-devops';

// As it is a card, you can customize it the way you prefer
// For example in the Service section

const overviewContent = (
  <Grid container spacing={3} alignItems="stretch">
    <EntitySwitch>
      <EntitySwitch.Case if={isAzureDevOpsAvailable}>
        <Grid item md={6}>
          ...
        </Grid>
        <Grid item md={6}>
          <EntityAzureReadmeCard maxHeight={350} />
        </Grid>
      </EntitySwitch.Case>
    </EntitySwitch>
  </Grid>
);

Step 5 - How to Test the App

To test that the Azure DevOps plugin is working, you need first to provide a Software Templates.

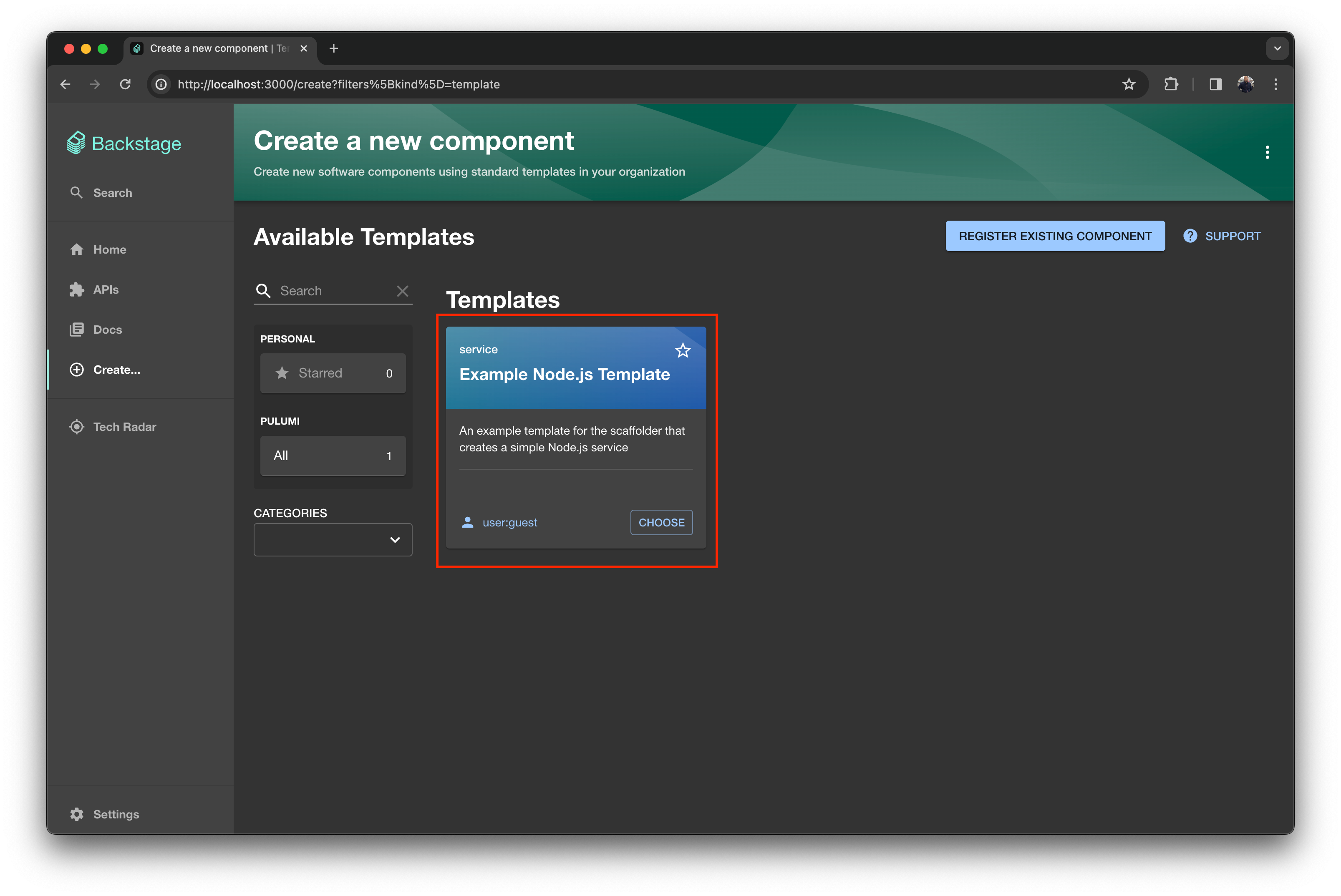

The Software Templates part of Backstage is a tool that can help you create Components inside Backstage. By default, it has the ability to load skeletons of code, template in some variables, and then publish the template to Azure DevOps.

Let’s edit the existing example template under packages/examples/ to include the Azure DevOps integration.

We start with the packages/examples/template/content/template.yaml file. Replace the content with the following:

apiVersion: scaffolder.backstage.io/v1beta3
# https://backstage.io/docs/features/software-catalog/descriptor-format#kind-template
kind: Template
metadata:
  name: example-nodejs-template
  title: Example Node.js Template
  description: An example template for the scaffolder that creates a simple Node.js service
spec:
  owner: user:guest
  type: service

  # These parameters are used to generate the input form in the frontend, and are
  # used to gather input data for the execution of the template.
  parameters:

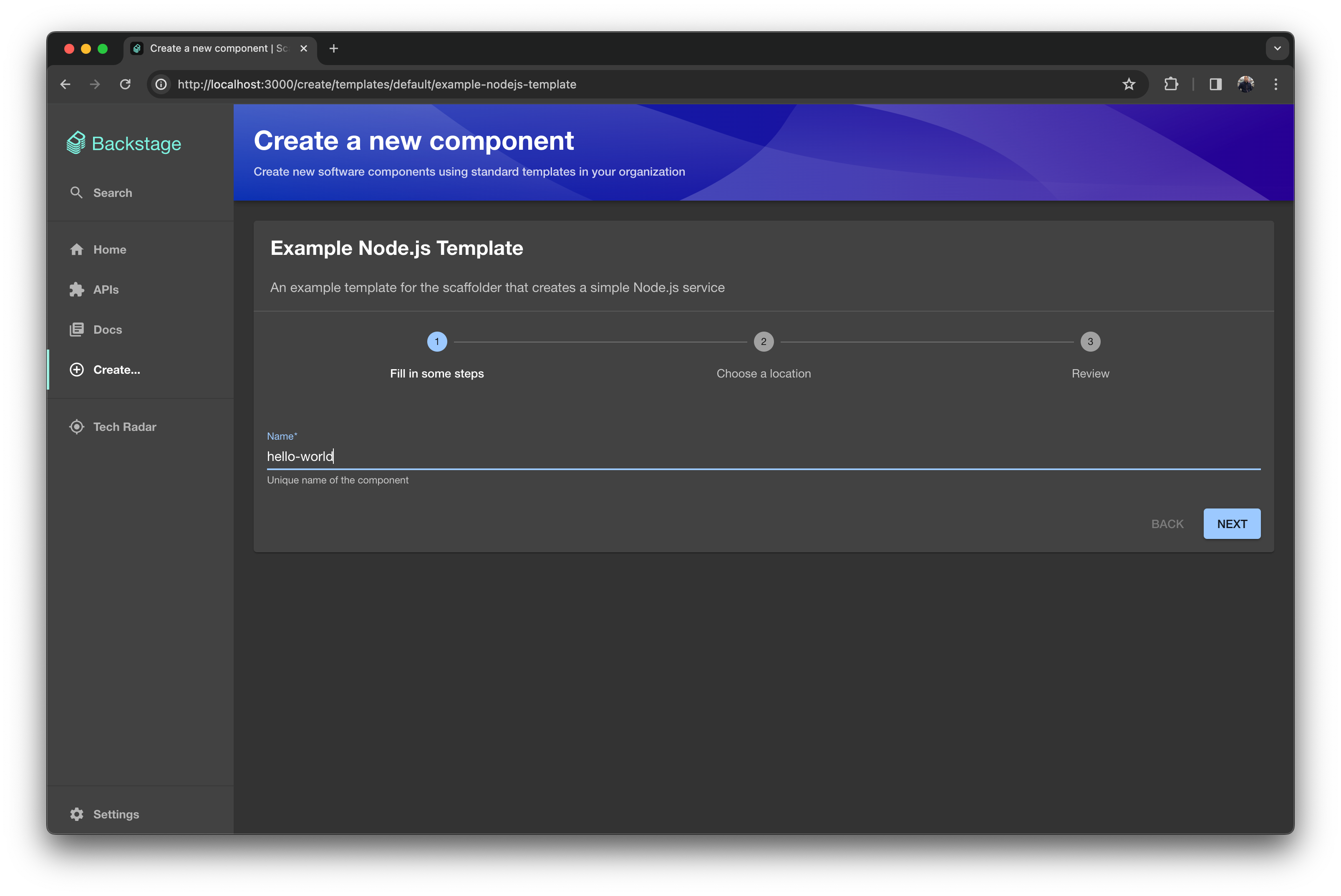

  - title: Fill in some steps
    required:
    - name
    properties:
      name:
        title: Name
        type: string
        description: Unique name of the component
        ui:autofocus: true
        ui:options:
          rows: 5

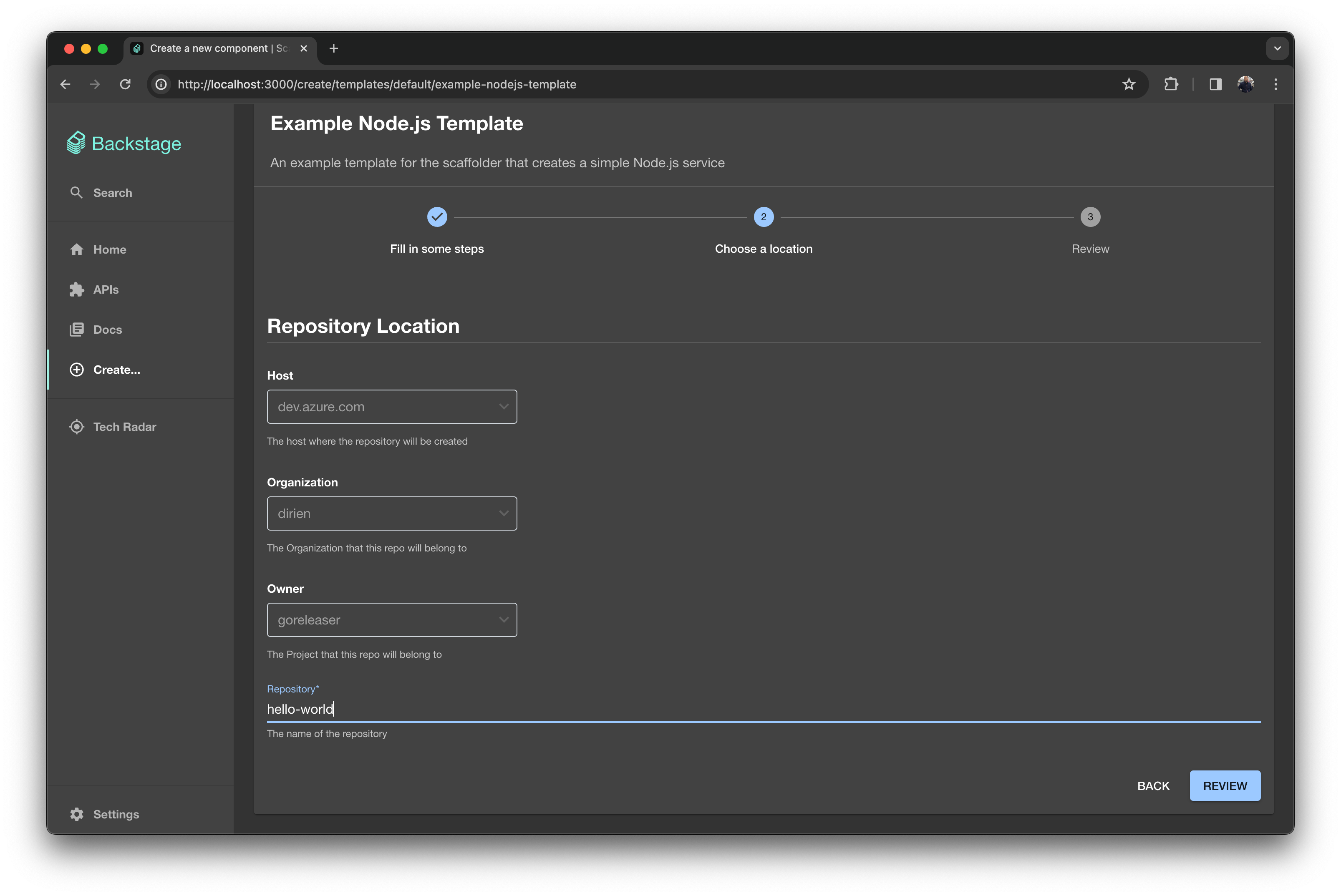

  - title: Choose a location
    required:
    - repoUrl
    properties:
      repoUrl:
        title: Repository Location
        type: string
        ui:field: RepoUrlPicker
        ui:options:
          allowedOrganizations:
          - <your organization>
          allowedOwners:
          - <your project>
          allowedHosts:
          - dev.azure.com

  # These steps are executed in the scaffolder backend, using data that we gathered
  # via the parameters above.
  steps: # Each step executes an action, in this case one templates files into the working directory.
  - id: fetch-base
    name: Fetch Base
    action: fetch:template
    input:
      url: ./content
      values:
        name: ${{ parameters.name }}
        destination: ${{ parameters.repoUrl | parseRepoUrl }}

  # This step publishes the contents of the working directory to GitHub.
  - id: publish
    name: Publish
    action: publish:azure
    input:
      description: This is ${{ parameters.name }}
      repoUrl: ${{ parameters.repoUrl }}
      defaultBranch: main

  # The final step is to register our new component in the catalog.
  - id: register
    name: Register
    action: catalog:register
    input:
      repoContentsUrl: ${{ steps['publish'].output.repoContentsUrl }}
      catalogInfoPath: '/catalog-info.yaml'

  # Outputs are displayed to the user after a successful execution of the template.
  output:
    links:
    - title: Repository
      url: ${{ steps['publish'].output.remoteUrl }}
    - title: Open in catalog
      icon: catalog
      entityRef: ${{ steps['register'].output.entityRef }}

And replace the packages/examples/template/content/catalog-info.yaml directory with the following content:

apiVersion: backstage.io/v1alpha1
kind: Component
metadata:
  name: ${{ values.name | dump }}
  annotations:
    dev.azure.com/project-repo: ${{values.destination.owner + "/" + values.destination.repo}}
spec:
  type: service
  owner: user:guest
  lifecycle: experimental

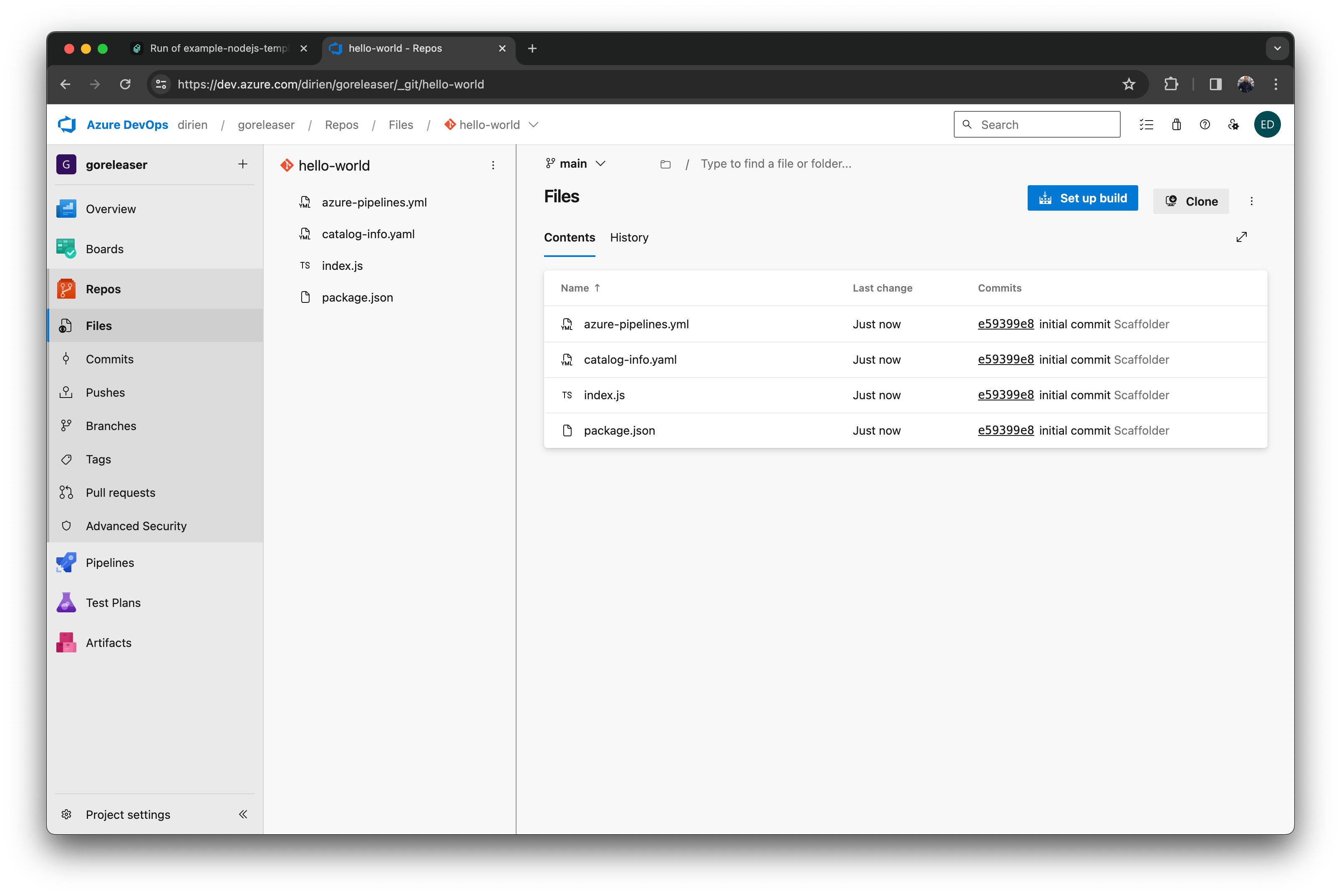

Important here is the dev.azure.com/project-repo annotation. This is the key that is used to link the component to the Azure DevOps project and repository.

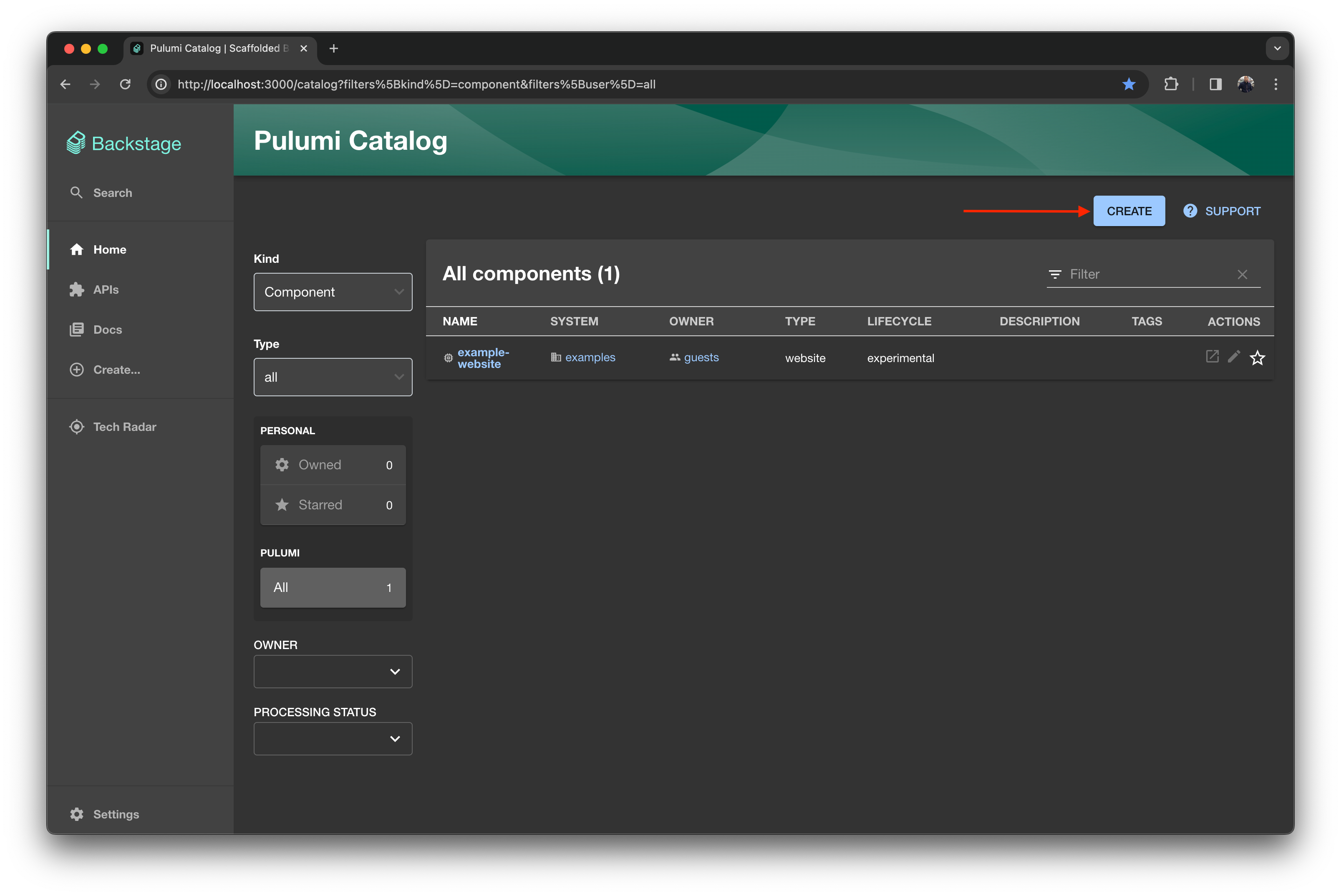

Head over to your browser and navigate to the Create page in Backstage. You should see the new template there.

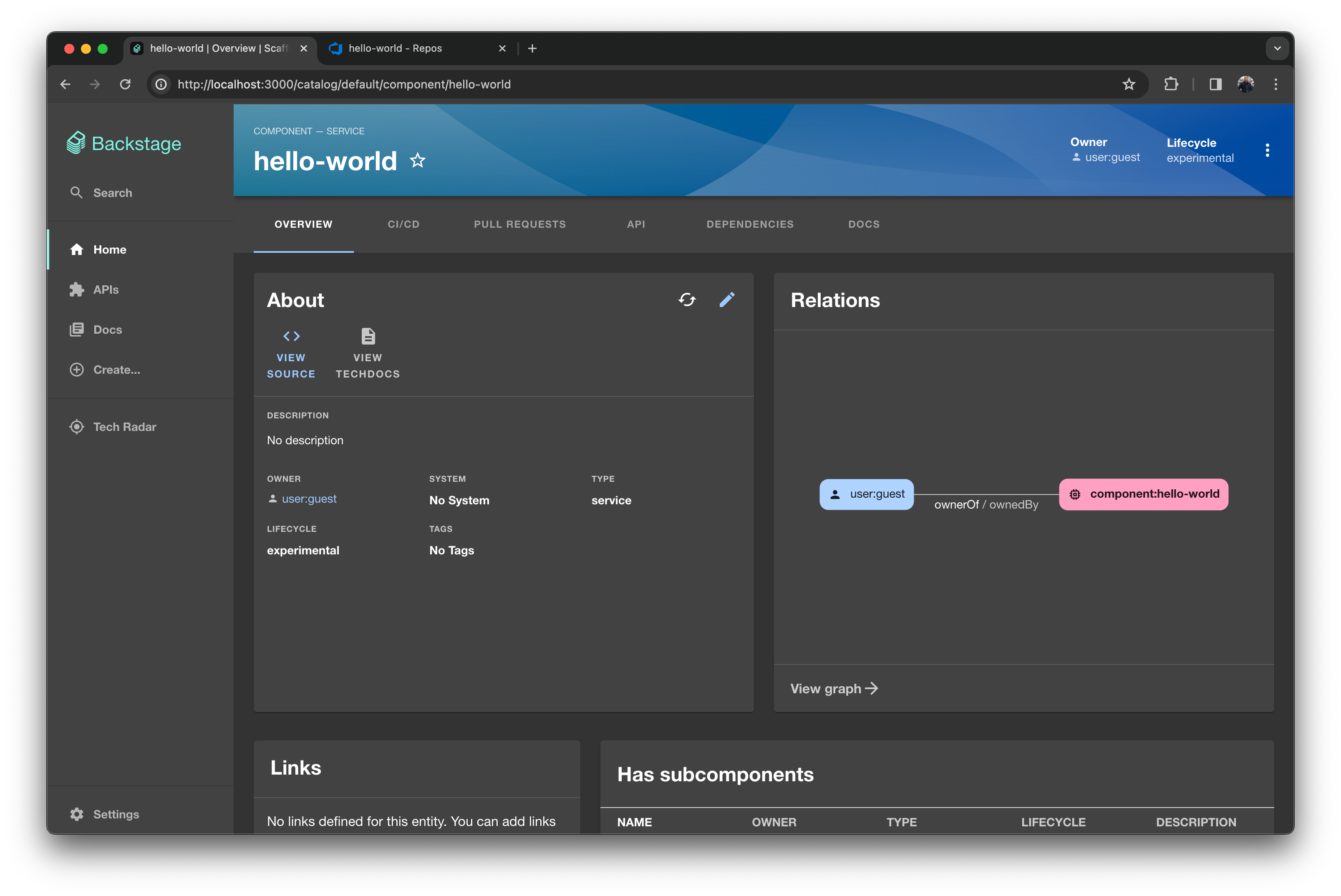

Awesome! You have now created a Backstage app and added the Azure DevOps integration to it.

Step 6 - Stop the App

To stop the app, press Ctrl+C in the terminal where the app is running.

Stretch Goals

Have a look on the other Azure DevOps components and try to add them to your app. Consult the Azure DevOps Plugin documentation for more information and implementation details.

Learn more

This site is open source. Improve this page.
